Round VAV Terminal Units
SDR

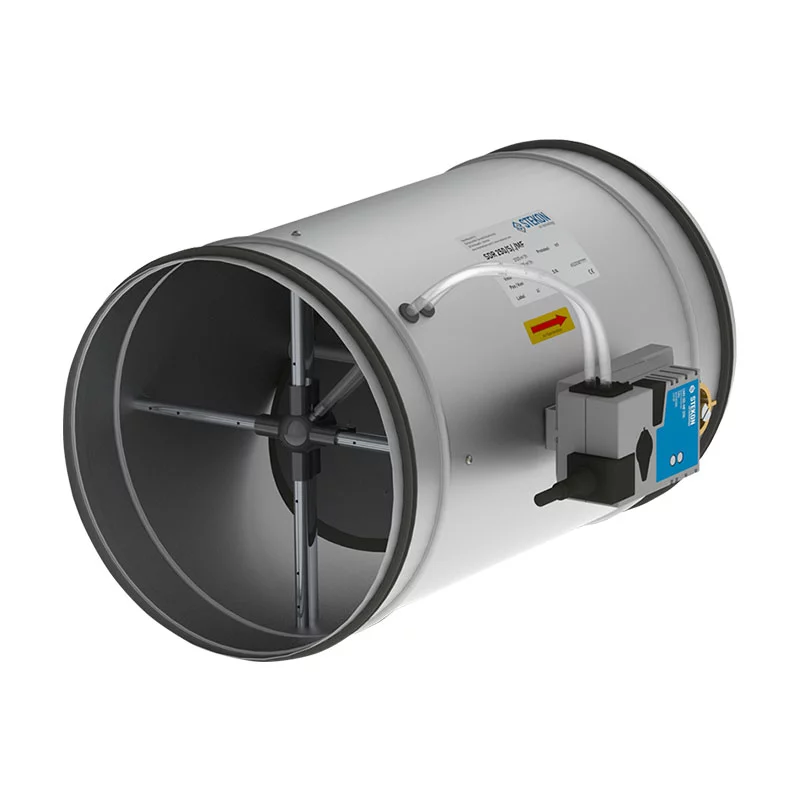

STEKON SDR adjusts the conditioned air volume supplied to the room based on data received from the thermostat or building automation system, ensuring minimal pressure drop and low noise levels. Thanks to the air flow sensor within the unit, it detects instantaneous air changes and positions the damper to allow the desired air volume, independently of pressure.
The VAV Unit provides good air quality by adjusting the air volume based on signals received from local or central systems, according to changing conditions in the serviced environment, such as the number of occupants or cooling requirements, while also preventing excessive ventilation.
The SDR Circular VAV Terminal Unit ensures precise flow rate adjustment by measuring air flow velocity at accurate points across the entire cross-section and averaging these measurements.
With Smartstep Selection, you can make all product selections quickly and easily and print out the technical outputs of the projects you have created.
Catalogues & Tools
Circular VAV Technical Selection Table
SIZE DN (mm) | 1.2 m/s – Vmin (m³/h) | 7 m/s – V (m³/h) | 7 m/s – ΔPmin (Pa) | 12 m/s – Vnom (m³/h) | 12 m/s – ΔPmin (Pa) |
|---|---|---|---|---|---|
100 | 32 | 188 | 30 | 322 | 70 |
125 | 51 | 297 | 30 | 509 | 70 |
160 | 84 | 491 | 20 | 841 | 50 |
200 | 132 | 772 | 15 | 1323 | 40 |
250 | 208 | 1212 | 15 | 2077 | 25 |
315 | 331 | 1932 | 15 | 3312 | 25 |
400 | 536 | 3126 | 15 | 5358 | 25 |
Round VAV Terminal Units (Variable Air Volume Damper)
Stekon Air Circular VAV (Variable Air Volume) Terminal Units are designed to provide precise air flow control in modern ventilation systems. In areas where comfort and energy saving are critical, such as offices, hospitals, hotels, and laboratories, they offer variable flow control according to fresh air requirements. The galvanized steel body structure, high leakage class, and compact design make them an ideal solution for suspended ceiling applications.
Why Stekon Circular VAV Unit?
Precise Measurement: Flow control with +/- 5% accuracy thanks to the integrated measuring sensor (special design).
High Leakage Class: Damper leakage class EN 1751 Class 4
Motor and Automation Compatibility: With Belimo VAV motor; 0-10V, 2-10V analog or Modbus/BACnet communication options.
Insulation Options: Double-walled (insulated) production possibility for sound absorption and thermal insulation.
Easy Installation: Quick duct installation with sealed gasket inlet-outlet connections.
