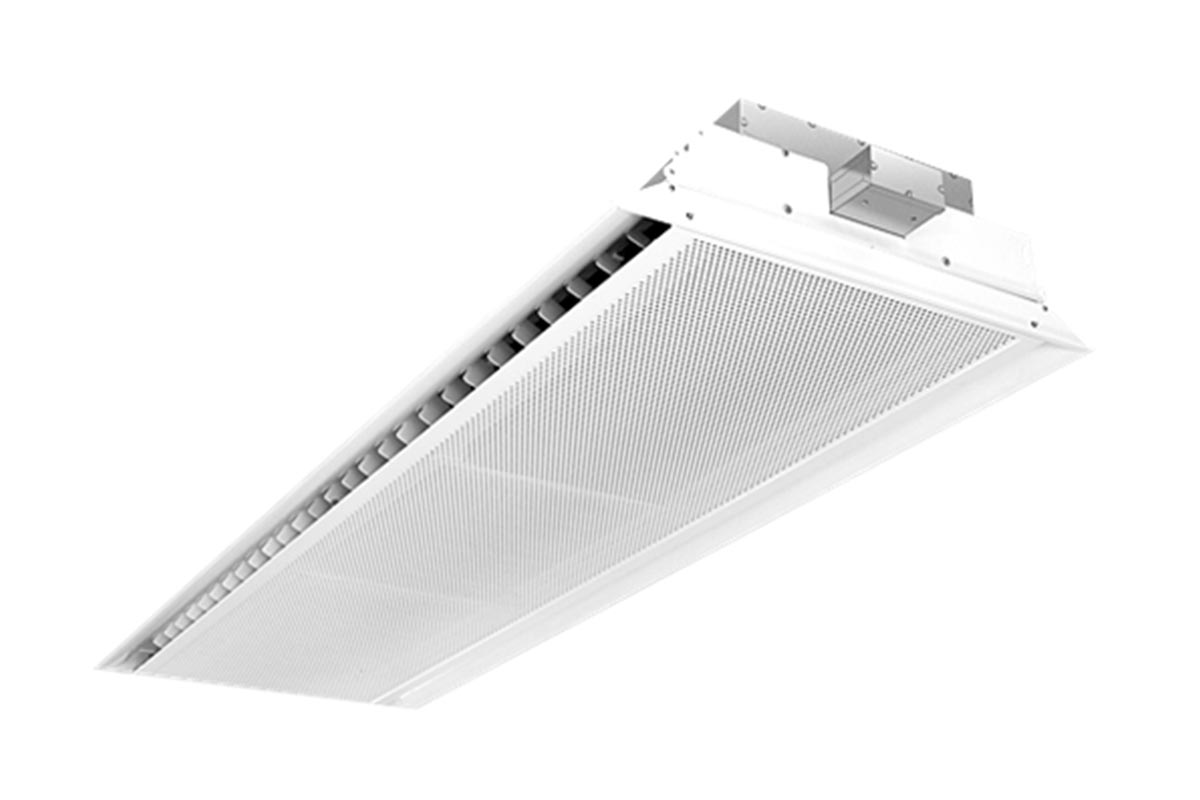

CEİLİNG İNDUCTİON DİFFUSER DİSCHARGİNG FROM TWO SİDES

DIA-HF
The ceiling diffuser DIA-HF is designed to ensure comfortable ventilation of rooms with high cooling loads. The energy advantage of water as a transport medium combined with optimized air flow and ceiling flow characteristics are used to best advantage. The shallow case height of the series is equally suitable for low ceilings in new constructions and renovation of existing buildings with an ideal room height range of 2,6 m to 4,0 m. There are two different models of the DIA-HF: model M for lower air volumes and model ML for higher air volumes. Additionally heat exchangers available in power level -1 and -2.



FUNCTION AND EFFECT

The room is supplied with centrally purified outside air (primary air) through the ceiling induction diffusers. The outside air flows through the nozzles into the mixing chamber. The air flows are mixed and flow horizontally into the room as supply air through the special diffuser slots. Four sizes (1200, 1800, 2400, 3000) in addition to five nozzle sizes (1 – 5) are available.
